Intelligent RGBW LED Neon Rope for advertising signage IP68
Product Name: RGB LED Flexible Neon Strip
Input Voltge: DC24V
Power : 12W
LED Type: 5050 SMD
Diameter: 14*26mm
- Product Introduction

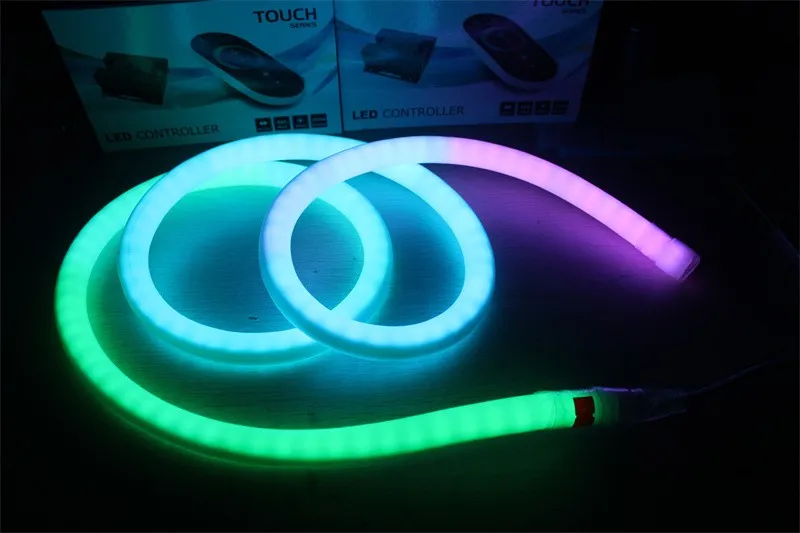

RGB LED Flexible Neon Strip
Model No.: FX-N1426
Product Overview
A flexible silicone-encased lighting solution combining the retro neon aesthetic with modern RGB technology. Designed for both architectural decoration and commercial signage applications, featuring IP67 waterproof protection and seamless bendability .
Key Features
- True Neon Effect: Uniform glow with no visible LED dots
- Full Spectrum Control: 16 million color combinations via RGB mixing
- Optional Material Design: Silicone or PVC
- DMX Compatibility: Professional-grade lighting control (requires external decoder)
- Cut-to-Length: Customizable at 50cm intervals
Technical Specifications
Product Name RGB LED Flexible Neon Strip
Input Voltage DC24V (±10%)
Total Power 12W/Meter
LED Type 5050 SMD RGB (Tri-chip)
LED Density 120 LEDs/M
Strip Dimensions Ø14mm × W26mm
Color Modes RGB/RGBW/RGBWW/Tunable White/DMX
CRI >80
IP Rating IP67 (Submersible up to 1m depth)
Max. Run Length 5M per strip (parallel connection)
Bend Radius ≥8cm (Safe bending limit)
Operating Temperature -20°C to +50°C
Lighting Performance
Color Range:
RGB: 16M colors (0-255 brightness per channel)
White Options:
• RGBW: 6000K Cool White
• RGBWW: 3000K-6000K Hybrid
• Tunable White: 2700K-6500K CCT adjustment
Control Protocols:
• Standard: PWM/RF/2.4GHz
• Advanced: DMX512/RDM (with decoder)
Lumen Output: 400-450lm/M (RGB mode)
Installation & Usage
Power Requirements:
Use 24V 5A power supply for 5M strip
10% voltage drop compensation for >5M runs
Cutting Points: Marked every 50cm (scissors-friendly)
Mounting:
Silicone adhesive backing (peel-and-stick)
Optional aluminum channel for permanent installs
Waterproofing:
Pre-applied silicone gel at cut ends
Use IP67 connectors for extensions
